Professional Quality!
At Digger Sales we specialise in auger drill gear. We know our stuff, the in's and out's of what is most suitable for your machine and how it all runs.
Auger Torque is a worldwide renowned brand, so you know you're in good hands. No after market replicates here.
ļ»æ
Get in touch to chat about how
we can help you.

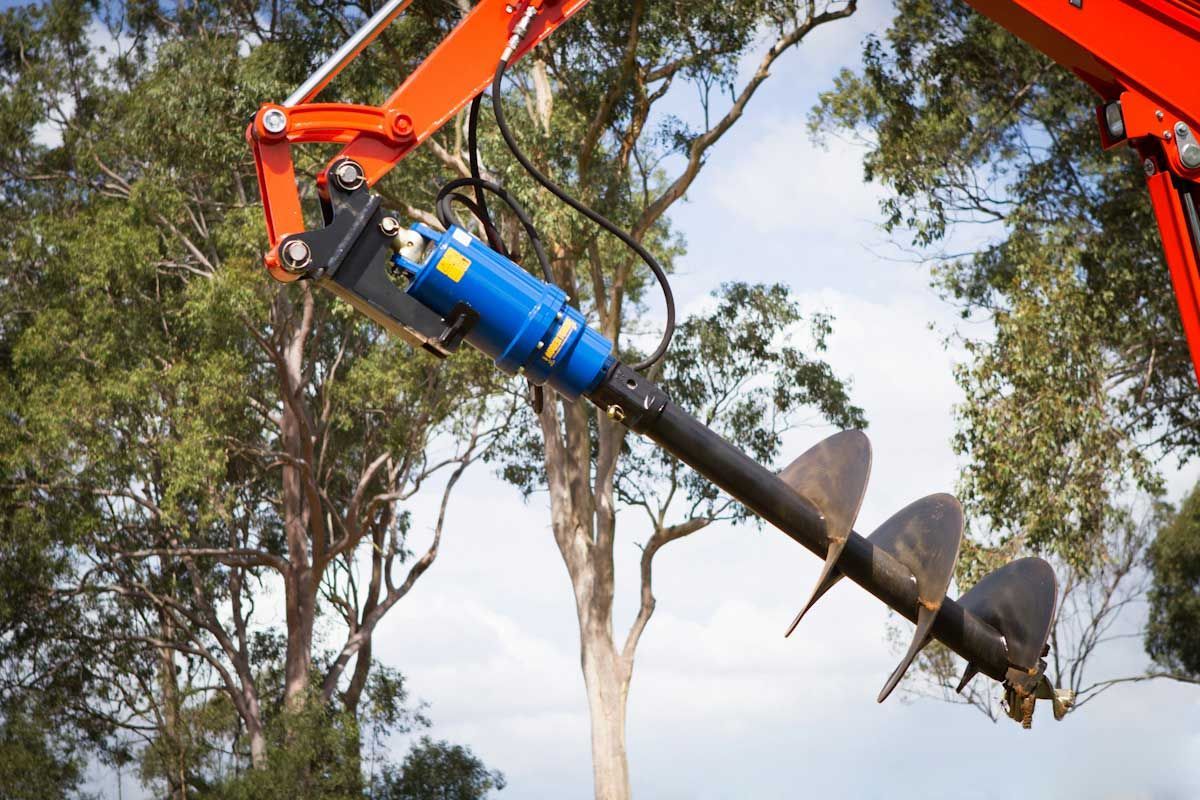

We offer many different auger drive units, so finding the auger drill that meets your needs is as simple as it can be!
1 to 5.5 ton Diggers, Mini Loaders & Skid Steers (low flow)
4.5 to 9 ton Diggers & Skid Steers (high flow)
9 to 20 ton Diggers
Screw Pile Torque Heads 20-50 ton
S4 Range
Suits 1.5 to 5.5ton Excavators, Low Flow Skid Steers and Mini Loaders
| Auger Drive Unit | Excavator Weight | Torque | Pressure | Oil Flow Range | Unit Weight | Price |
|---|---|---|---|---|---|---|
| X1500 | 1-2ton | 1496 Nm | 205 Bar | 20-45 Lpm | 51kg | $2,120 + gst |
| X2000 | 1-2.5ton | 2190 Nm | 240 Bar | 25-57 Lpm | 52kg | $2,390 + gst |
| X2500 | 1.5-3ton | 2847 Nm | 240 Bar | 27-65 Lpm | 53kg | $2,490 + gst |
| 3000 | 2-3.5ton | 2877 Nm | 240 Bar | 27-75 Lpm | 76kg | $2,980 + gst |
| 3500 | 2.4-4.5ton | 3614 Nm | 240 Bar | 40-85 Lpm | 78kg | $3,080 + gst |
| 4500 | 3-5.5ton | 4499 Nm | 240 Bar | 50-95 Lpm | 80kg | $3,280 + gst |
| ML2000 | Mini Loader | 2190 Nm | 240 Bar | 27-57 Lpm | 45kg | $2,230 + gst |
| ML2500 | Mini Loader | 2847 | 240 Bar | 27-65 Lpm | 45kg | $2,330 + gst |

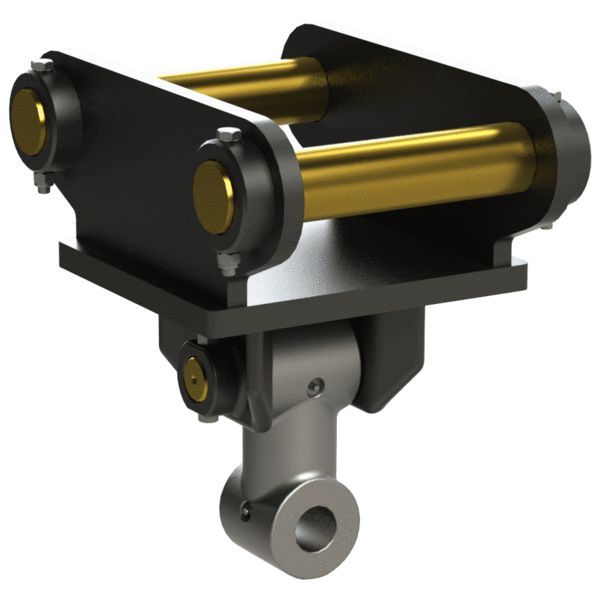

| Excavator Brackets | Price | Loader/Skid Steer Hitches | Price |
|---|---|---|---|

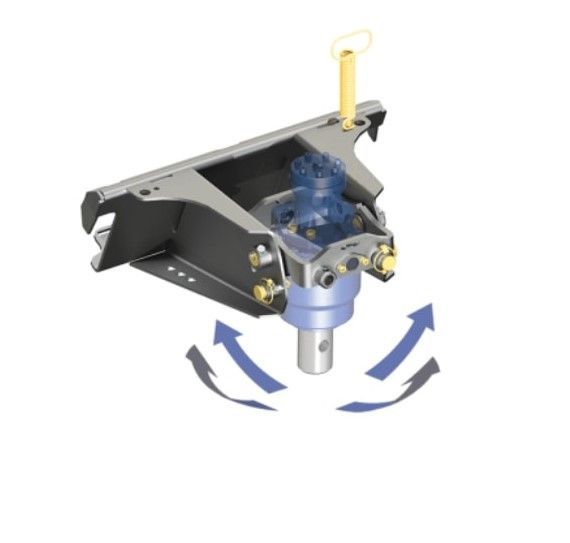

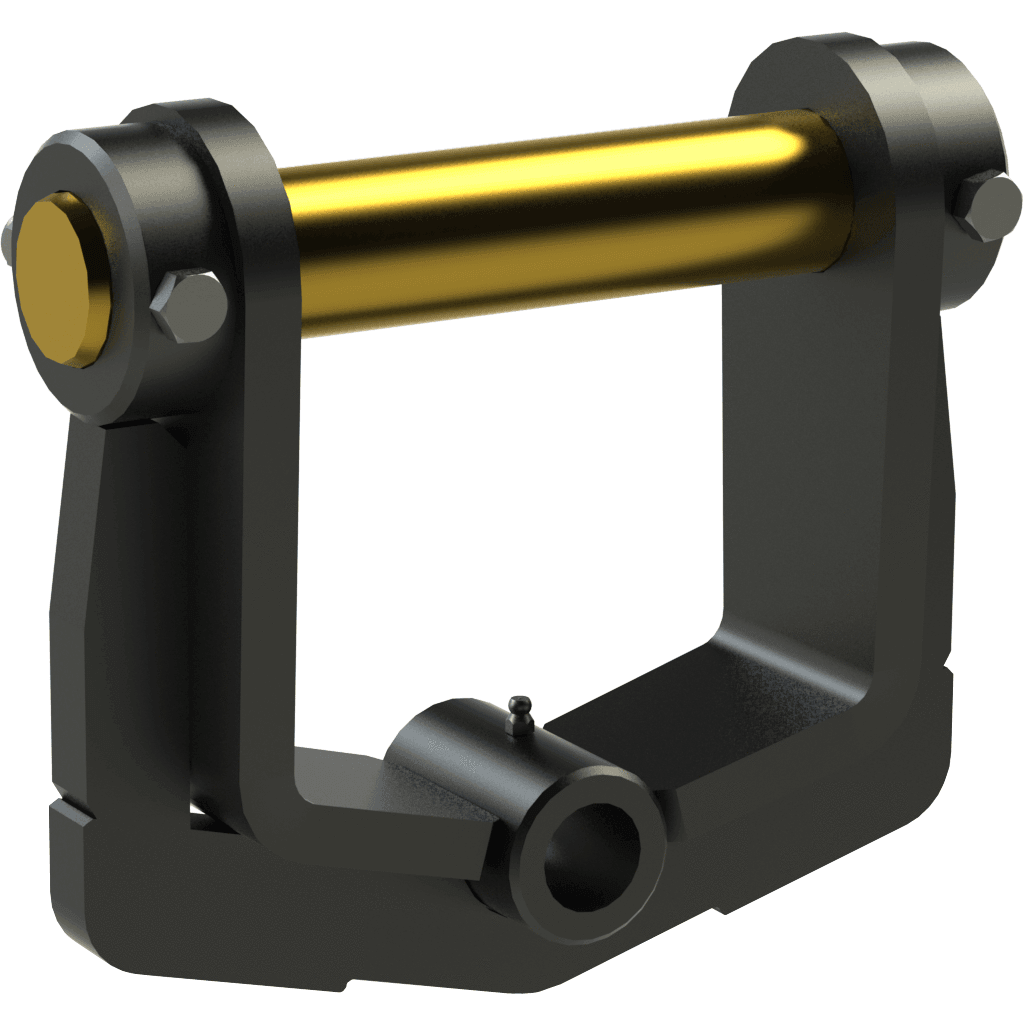

| Single Pin (25/30/35mm) | $275 + gst | Mini Loader Cradle | $900 + gst |
| Double Pin (25/30/35mm) | $550 + gst | Avant Loader Top Swing | $690 + gst |

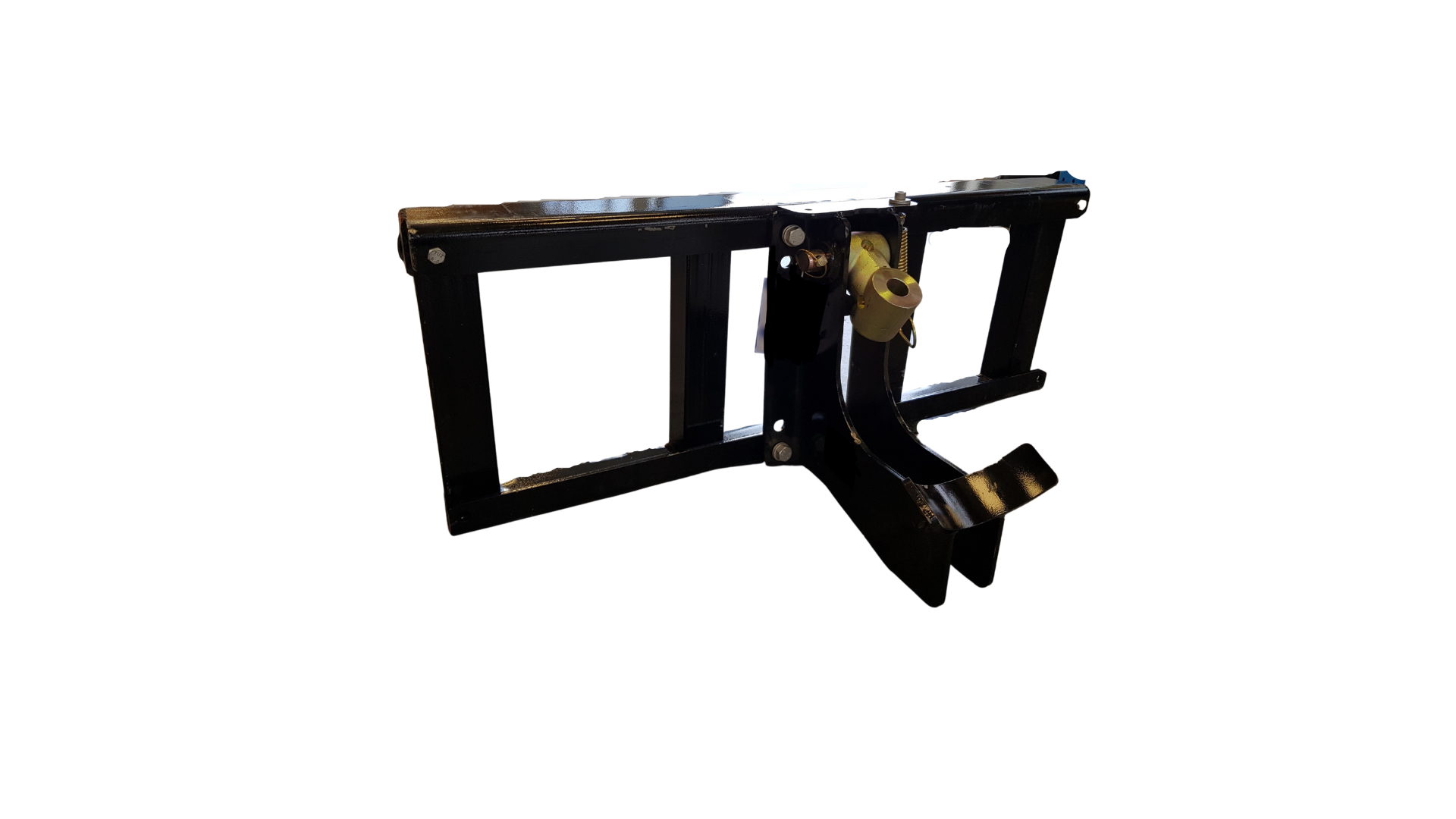

| Double Pin (38/40/45mm) | $650 + gst | Universal Skid Steer | $1,400 + gst |
| Double Pin (50mm) | $700 + gst | Tractor Euro Frame | $1,750 + gst |
To upgrade to Cradle Bracket - add $350 + gst to double pin price above.
| S4 Auger Sizes | S4 Extension Sizes | |
|---|---|---|
| 100mm | 450mm | 500mm |
| 150mm | 500mm | 800mm |
| 200mm | 600mm | 1000mm |
| 250mm | 700mm | 1500mm |
| 300mm | 750mm | 2000mm |
| 350mm | 800mm | |
| 400mm | 900mm |
Pricing for Augers and Extensions on enquiry.
S5 Range
Suits 5-9ton Excavators and High Flow Skid Steers
| Auger Drive Unit | Excavator Weight | Torque | Pressure | Oil Flow Range | Unit Weight |
|---|---|---|---|---|---|
| 5500 | 4.5-6ton | 5477Nm | 240 Bar | 40-115 Lpm | 108kg |
| 7000 | 5-8ton | 6819 Nm | 260 Bar | 50-115 Lpm | 110kg |
| 8000MAX | 6-9ton | 8152Nm | 240 Bar | 70-150 Lpm | 116kg |
| 5500TC | Truck Crane | 5477Nm | 260 Bar | 15-50 Lpm | 108kg |
| Excavator Brackets | Loader/Skid Steer Hitches |
|---|---|
| Double Pin & Cradle Brackets (40/45mm) | Universal Skid Steer |
| Double Pin & Cradle Bracket (50mm) | Tractor Euro Frame |
| Double Pin & Cradle Brackets (60/65mm) |
| S5 Auger Sizes | S5 Extension Sizes | |
|---|---|---|
| 150mm | 500mm | 1000mm |
| 200mm | 600mm | 1500mm |
| 250mm | 700mm | 2000mm |
| 300mm | 750mm | 0-2m Telescopic |
| 350mm | 800mm | |
| 400mm | 900mm | |
| 450mm | 1000mm |
Pricing for the S5 range on enquiry.
ļ»æ
S6 Range
Suits 9-20ton Excavators
| Auger Drive Unit | Excavator Weight | Torque | Pressure | Oil Flow Range | Unit Weight |
|---|---|---|---|---|---|
| 10000 | 9-13ton | 10662 Nm | 240 Bar | 70-150 Lpm | 162kg |
| 12000 | 10-14ton | 12610 Nm | 240 Bar | 70-150 Lpm | 162kg |
| 15000MAX | 14-19ton | 15071 Nm | 240 Bar | 80-170 Lpm | 173kg |
| 20000MAX | 12-22ton | 19564 Nm | 240 Bar | 80-170 Lpm | 268kg |
| 25000MAX | 15-22ton | 24755 Nm | 240 Bar | 80-170 Lpm | 269kg |
Pressure Relief Valve (PRV) Kit available to suit MAX drive units.
| Excavator Brackets |
|---|
| Double Pin & Cradle Hitch (60/65mm) |
| Double Pin & Cradle Hitch (80mm) |
| Double Pin & Cradle Hitch (90mm) |
| S6 Auger Sizes | S6 Extension Sizes | |
|---|---|---|
| 150mm | 600mm | 1000mm |
| 200mm | 700mm | 1500mm |
| 250mm | 750mm | 2000mm |
| 300mm | 800mm | 3000mm |
| 350mm | 900mm | 2-4m Telescopic |
| 400mm | 1000mm | 3-6m Telescopic |
| 450mm | 1200mm | 4-8m Telescopic |
| 500mm | 1500mm |
Pricing for the S6 range on enquiry.

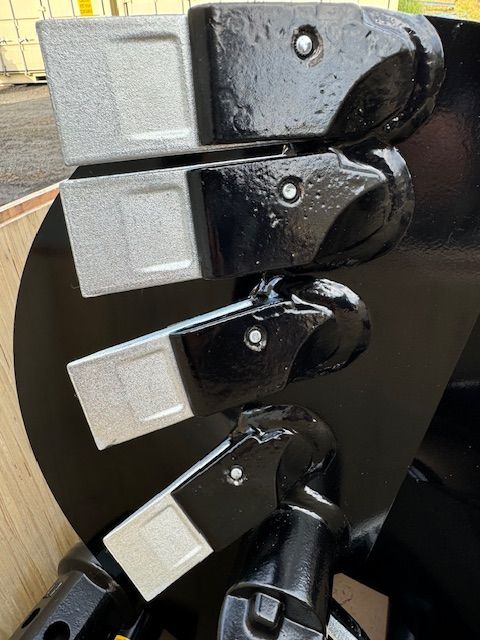

Auger Teeth
CLAY
Suitable for drilling into earth and clay.

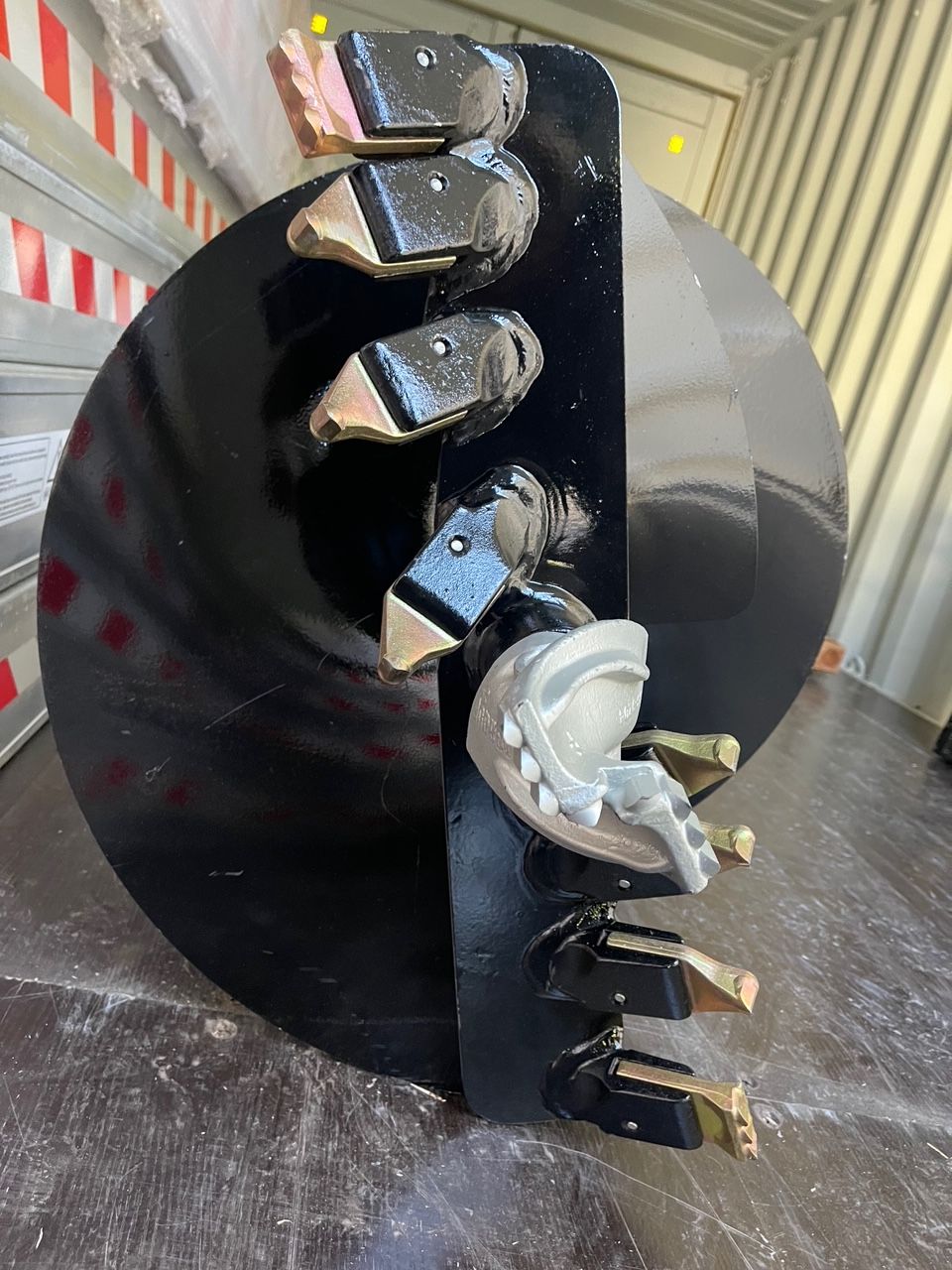

TUNGSTEN
Suitable for drilling into medium to hard ground, such as sandstone.

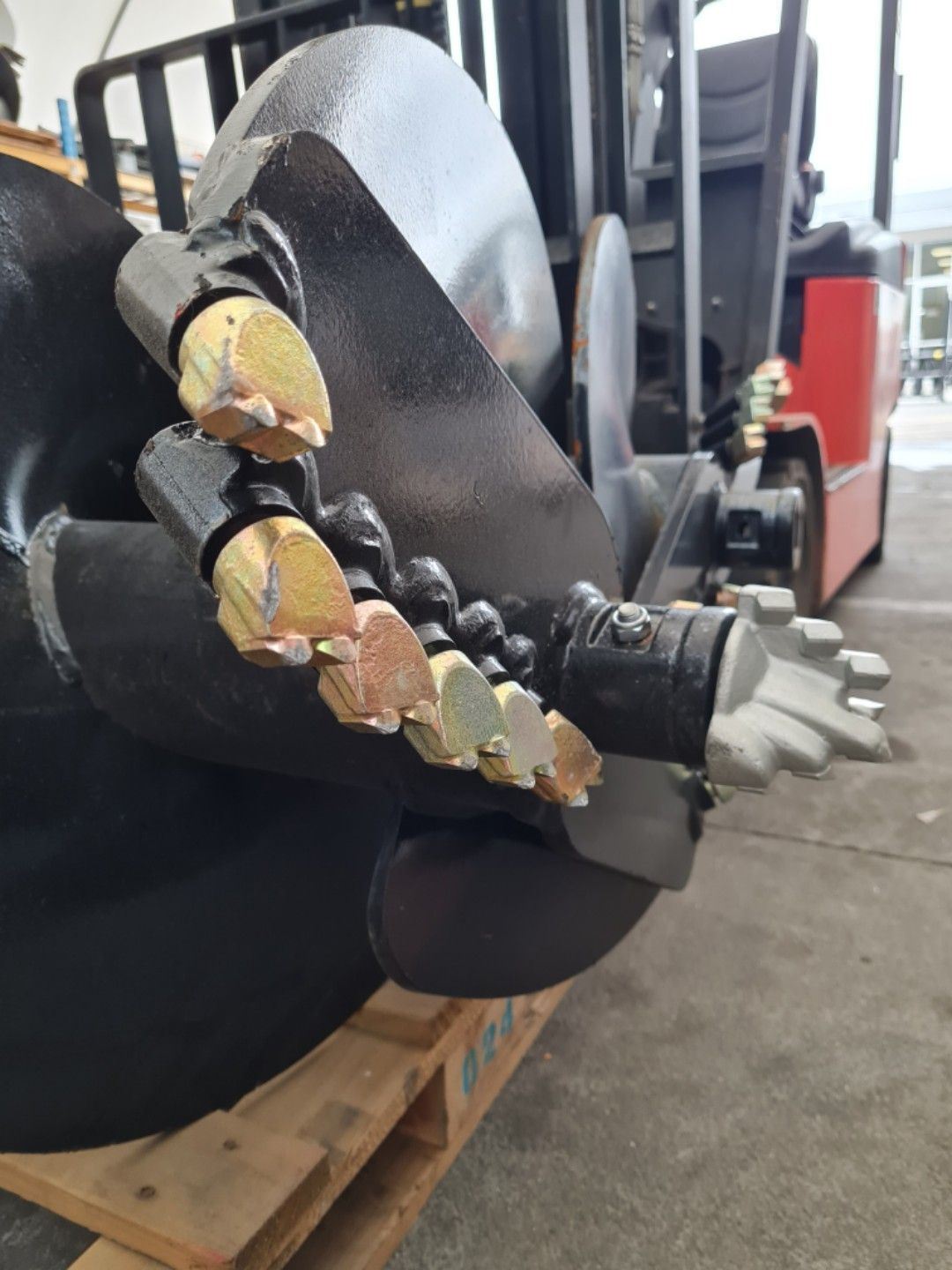

ROCK
Suitable for drilling into extra hard ground and asphalt.

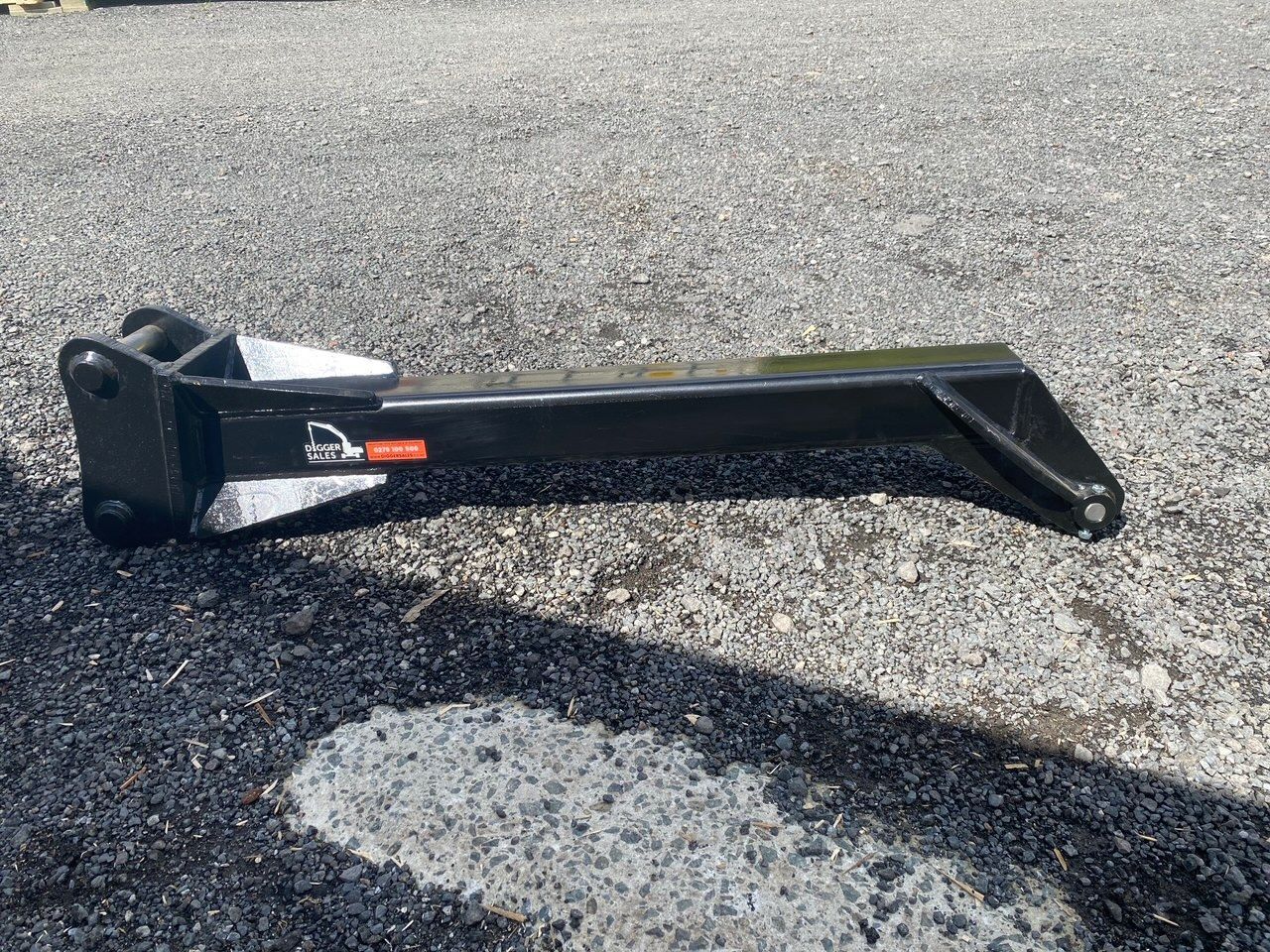

Digger Beak
The extension beak which attaches to your excavator and acts as an additional arm to allow more reach and drilling depth without the need to hire or bring in a larger digger.
All sizes built to order | Prompt turnaround.
ADD to the versatility of your Auger Drive Unit
with these attachments.........

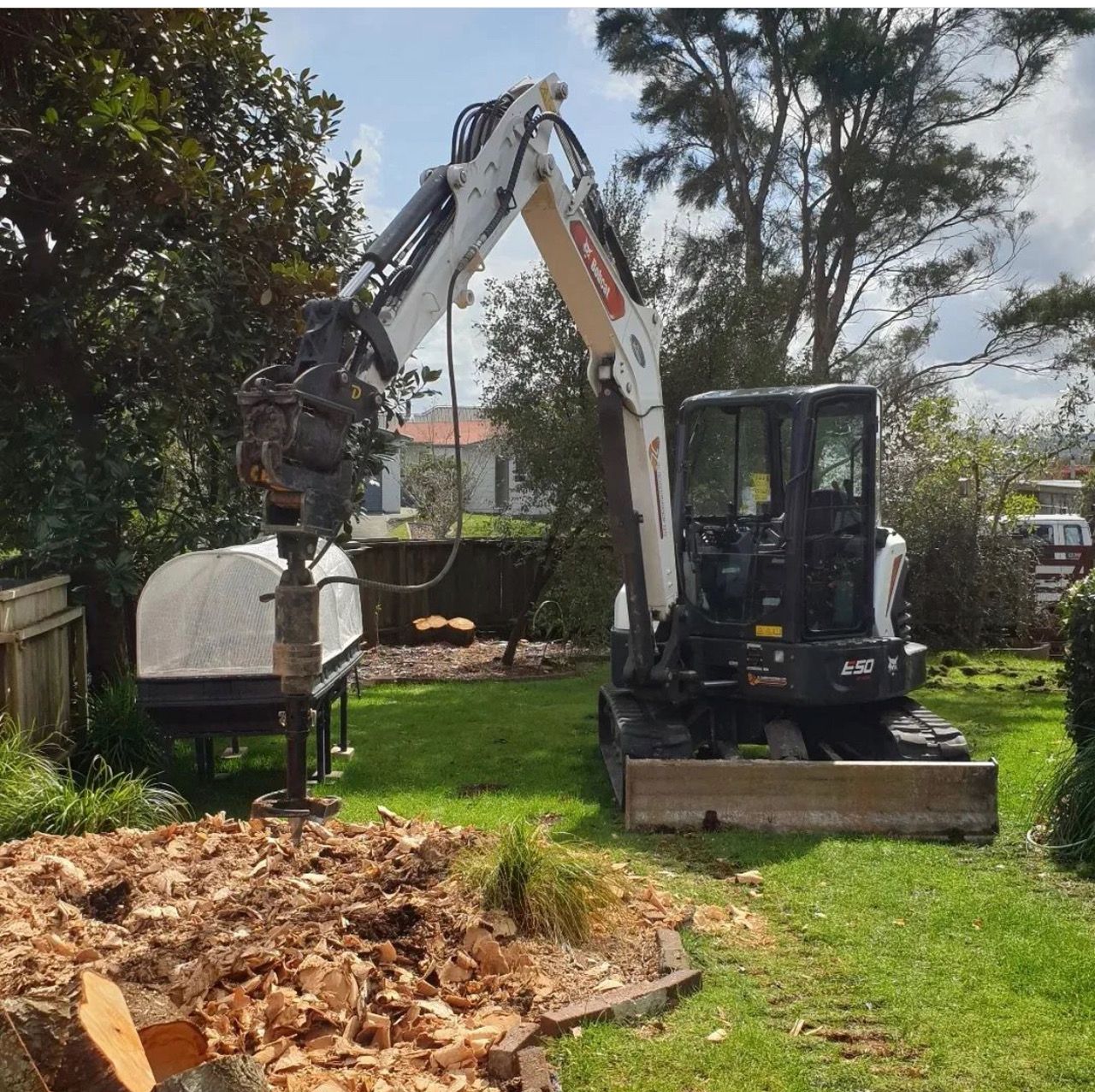

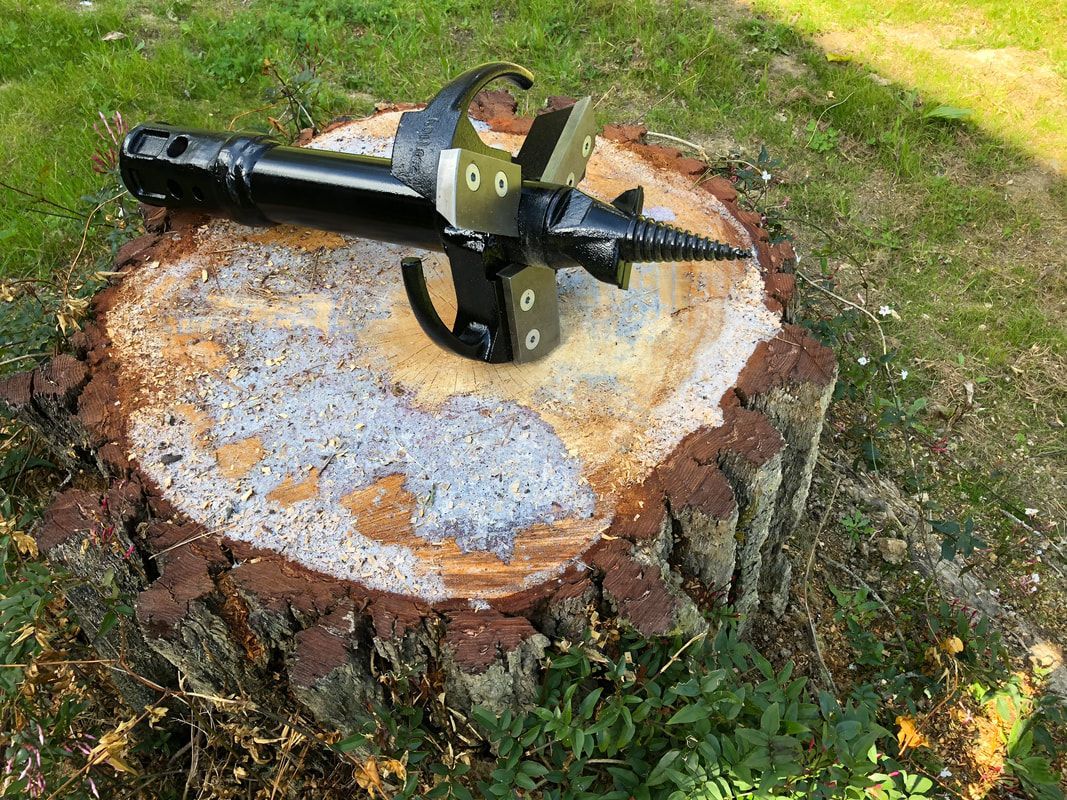

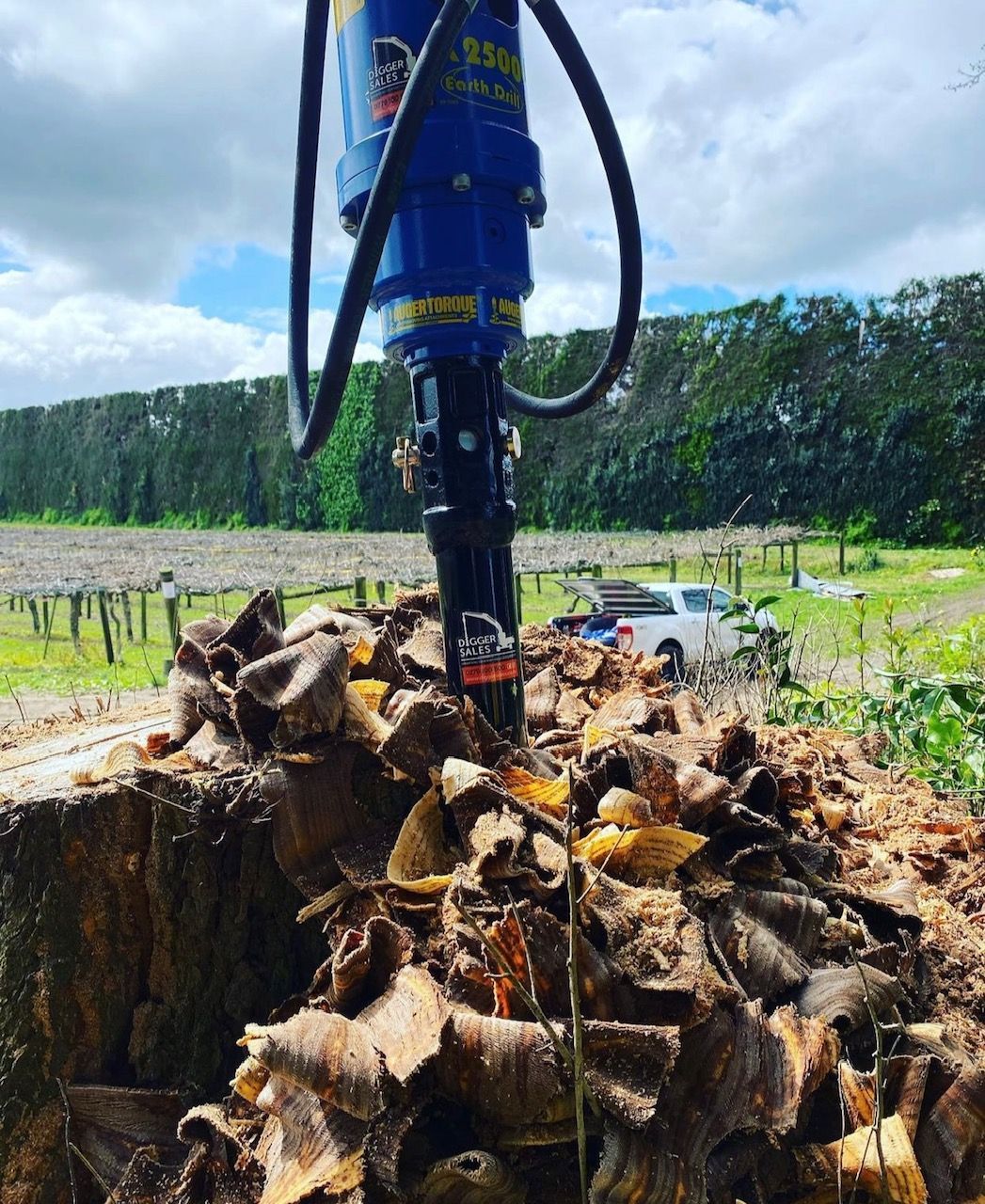

Stump Planer/Grinder
Starting From $1,695 + gst
250mm Diameter
(50.8mm/2"inch Hexagon Hub)
To suit 1.5 to 5ton *
350mm Diameter
(75mm Square Hub)
To suit 4.5 to 22ton
*A minimum drive unit compatibility required.
** Replaceable Pilot & Blade Kits also available.

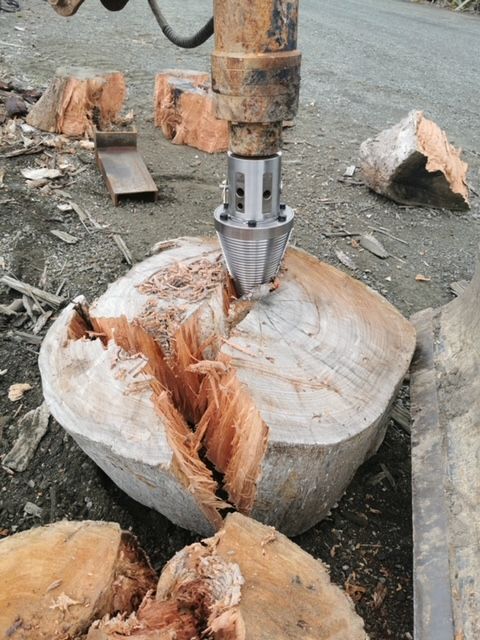

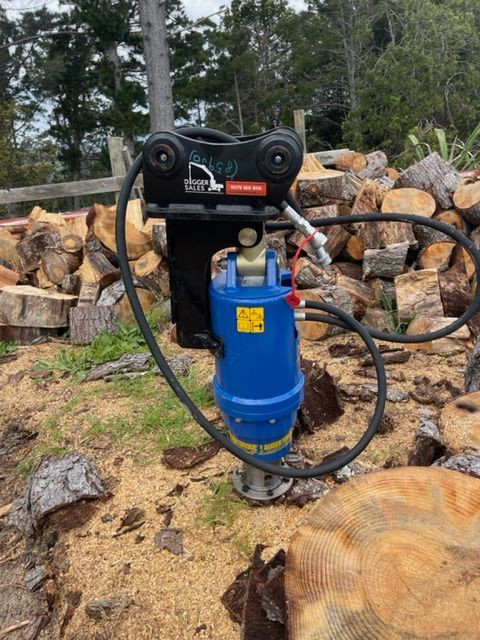

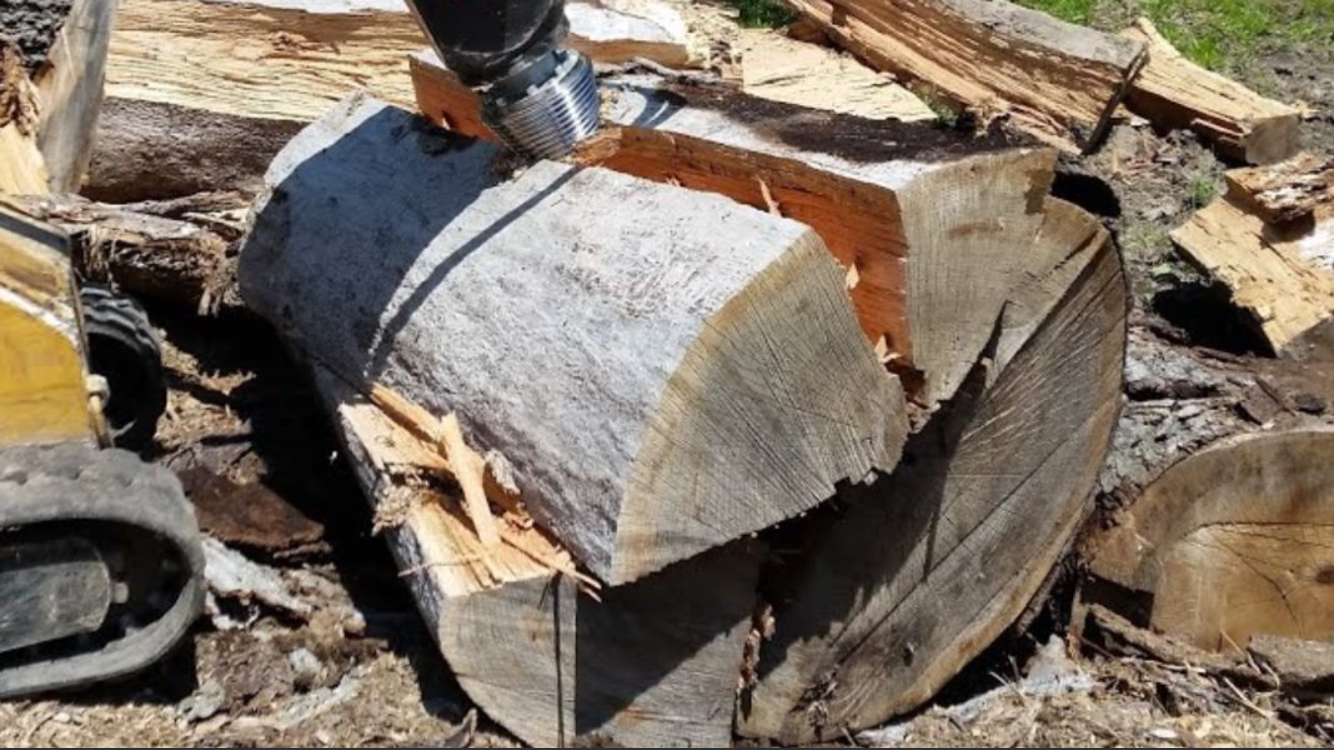

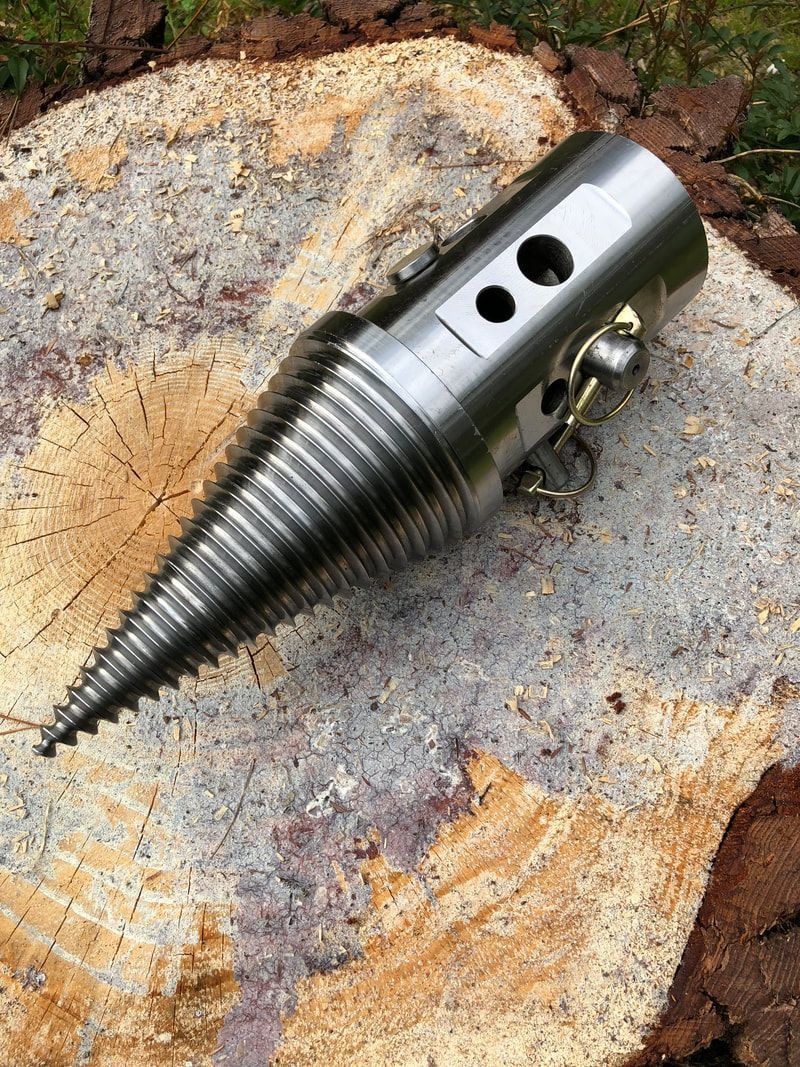

Cone Log Splitter
Starting From $1,695 + gst
Diameter:
- ā180mm
- 200mm
- 300mm
ā
Hexagon Hub - 50.8mm/2"inch
Square Hub - 75mm
Also fits the Digga auger drive units.

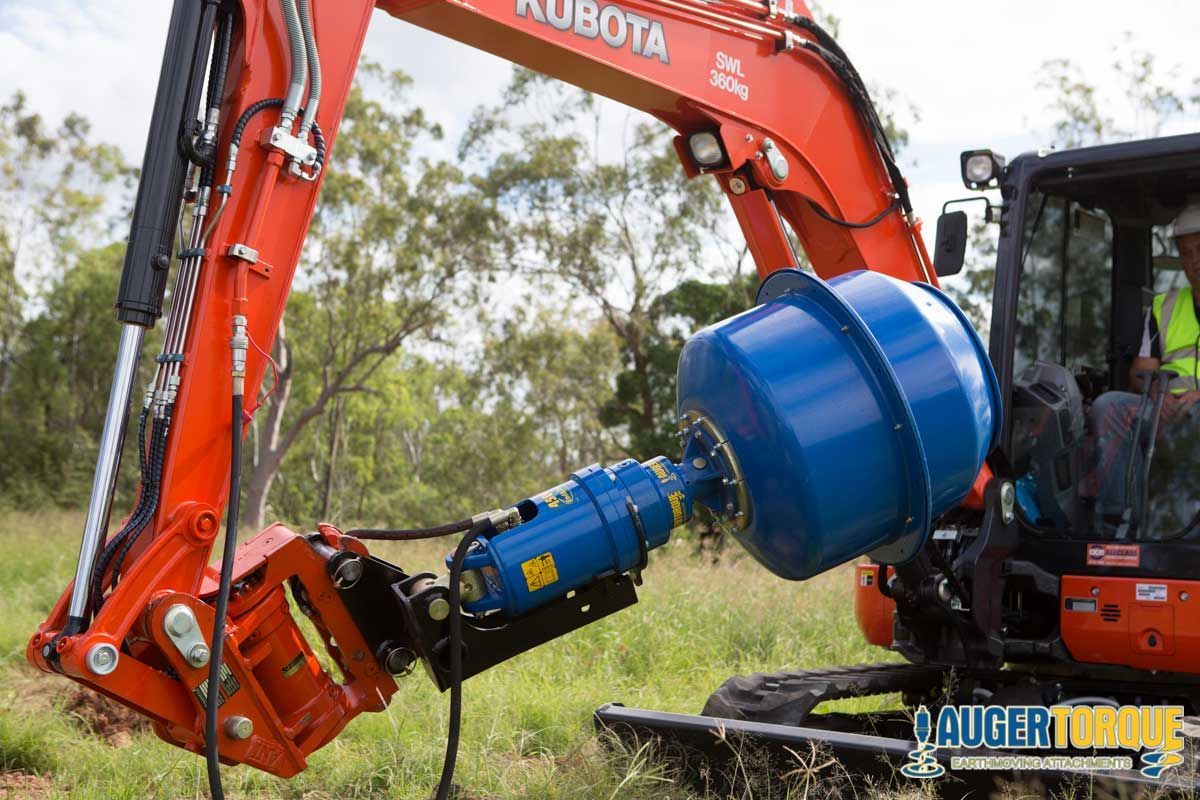

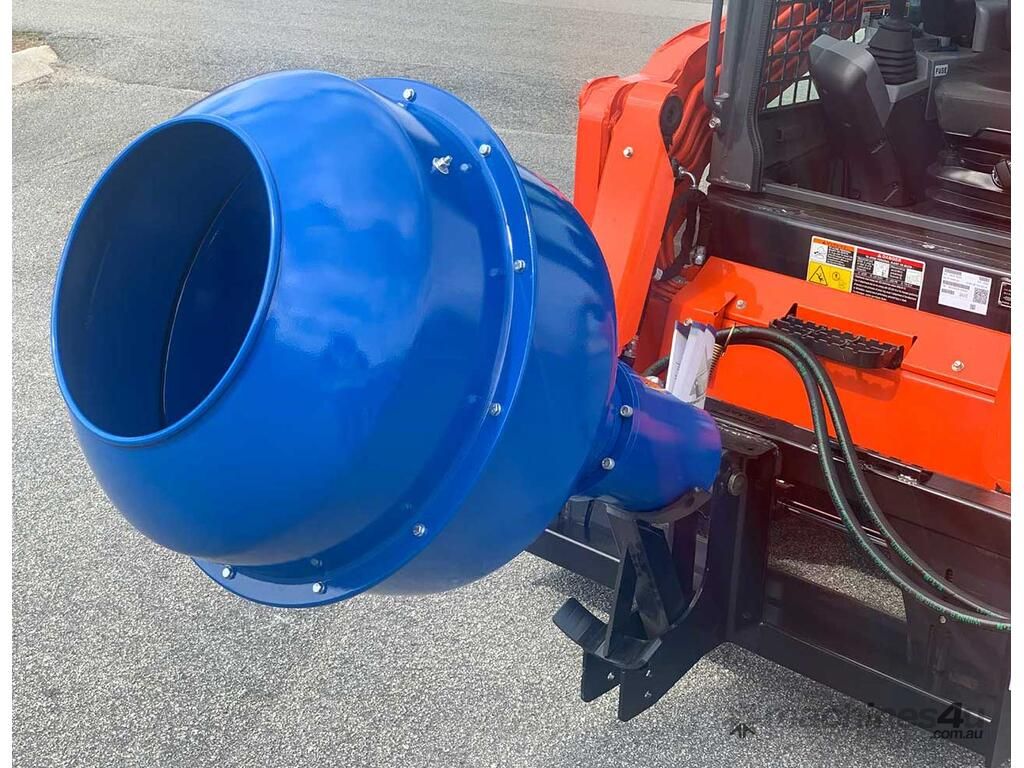

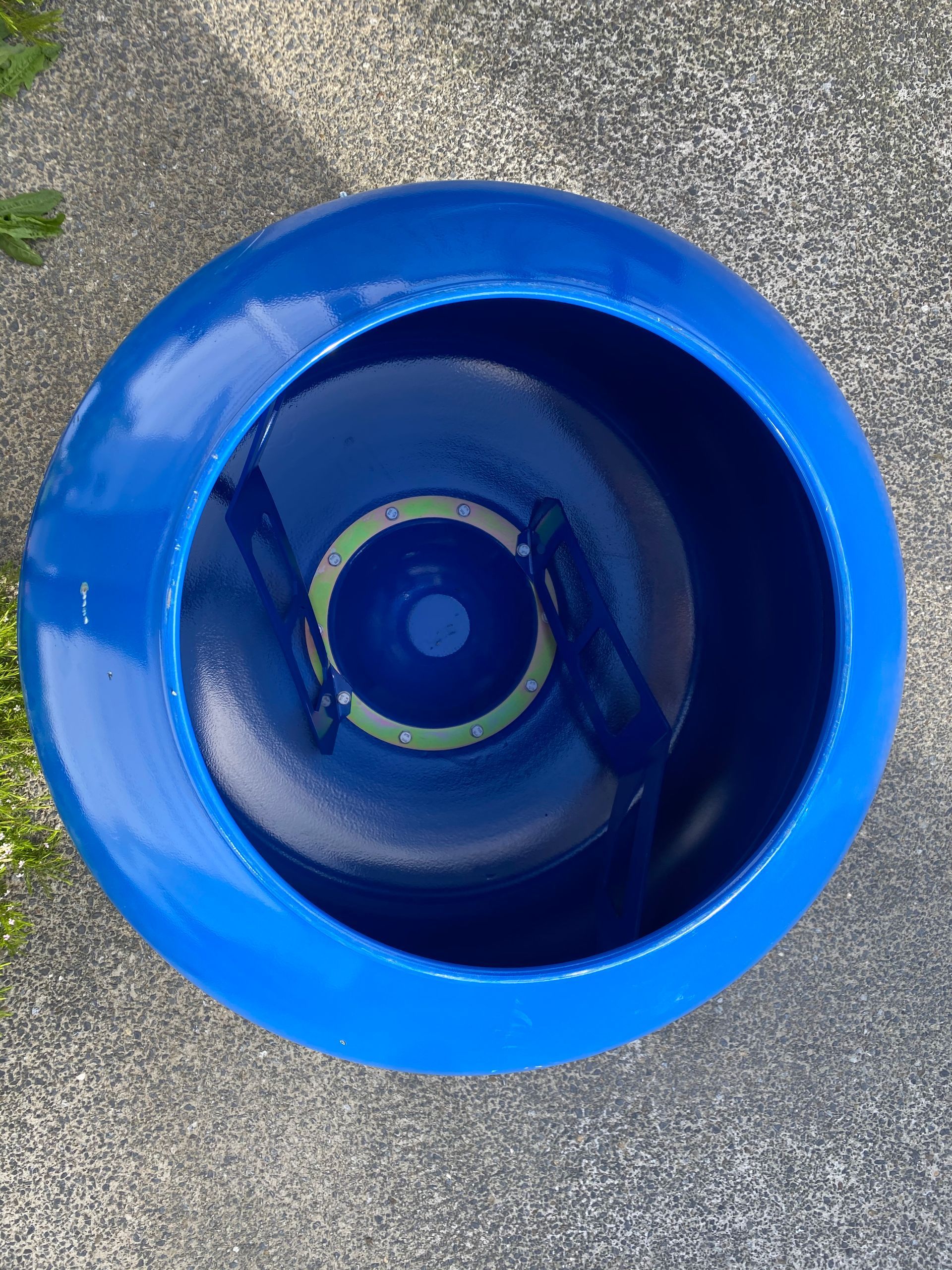

Mixer Bowl
$1,300 + gst
Suitable for 1 to 8 ton Diggers, Mini Loaders & Skid Steers
Bowl Capacity: 180L
Depth: 690mm
Diameter: 724mm
Unit Weight: 33kgā
Great for those small jobs and tight spots.
Please note: you will require a Cradle Bracket to operate the mixer bowl. We can supply a full Cradle Bracket or just the cradle arm that you can weld onto an existing double pin bracket.
